1. Technology |
|
|
|
R.E.S. unit: |
wind park & photovoltaic station |
|
|
Storage unit |
electrochemical lead acid batteries OPzV |
|
|
|
|
|
|
|
||
|

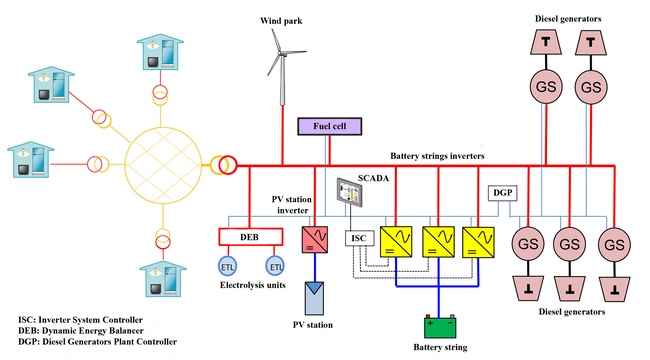

Figure 1: Layout of the hybrid power plant in Agios Efstratios. |
||
|
|
|
|
|
2. Siting |
|
|
|
Hybrid power plant installation location: |
Hill “Lemoni Rachi” |
|
|
|
||
|
|
||
|

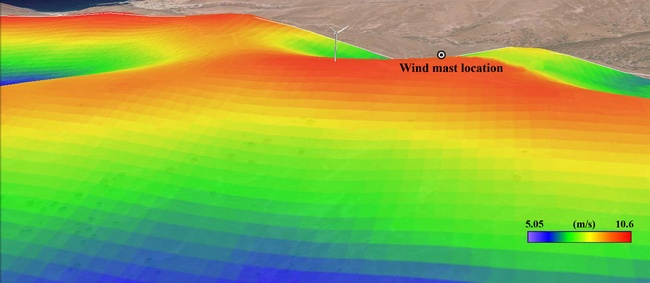

Figure 2: 3D representation of the wind park’s siting on a wind potential map background. |
||
|
|
||
|
3. Dimensioning |
|
|
|
Nominal guaranteed power (kW) |
720 |
|
|
Wind park’s nominal power (kW) |
850 |
|
|
Photovoltaic station nominal power (kW) |
101.25 |
|
|
Batteries charging / discharging capacity (kW) |
720 |
|
|
Batteries storage nominal capacity (MWh) |
3.600 |
|
|
Batteries maximum discharge depth (%) |
70 |
|
|
|
|
|
|
4. Energy results |
|
|
|
Annual cover percentage of the electricity consumption in the autonomous insular system from the hybrid power plant: |
92.73% |
|
|
|
|
|
|
|
||
|

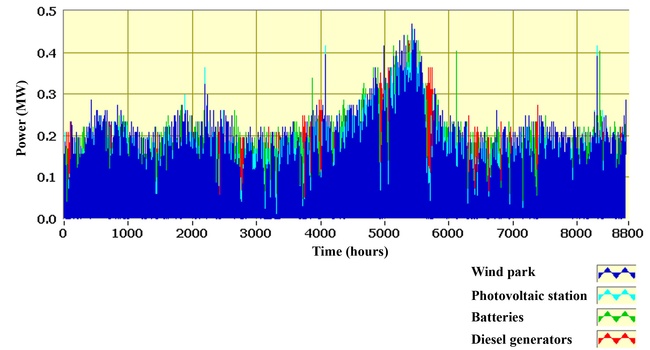

Figure 3: Annual power production synthesis after the introduction of the hybrid power plant. |
||
|
|
||
|
|
||
|
Figure 4: Power production synthesis during low power demand period (March) after the introduction of the hybrid power plant. |
||
