1. Licensing procedure |
|
|
|
Application number in Regulatory Authority of Energy for the issuance of the Power Production license |
Γ – 05456 |
|
|
|
|
|
|
2. Technology |
|
|
|
R.E.S. unit: |
wind park |
|
|
Storage unit |
pumped hydro storage (PHS) |
|
|
|
|
|
|
|
||
|
Figure 1: Layout of the hybrid power plant οφ 55ΜW guaranteed power in Crete. |
||
|
|
|
|
|
3. Siting |
|
|
|
Wind park installation location: |
Hills “Agios Charalampos” and “Tsivi”, Prefecture of Heraklion |
|
|
PHS installation location: |
Hill “Apidaki” & gulf east of coast “Livari” Prefecture of Lasithi |
|
|
|
||
|
|
||
|

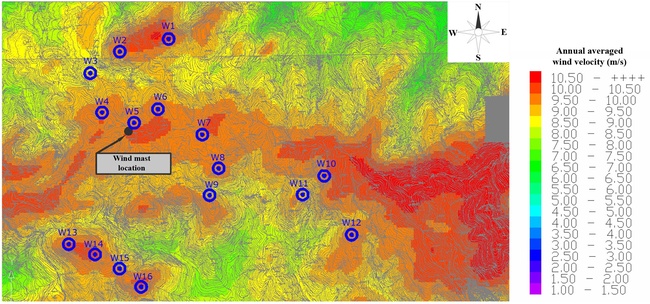

Figure 2: Representation of the wind park’s”Agios Charalampos” siting on a wind potential map background. |
||
|
|
|
|
|
|
||
|

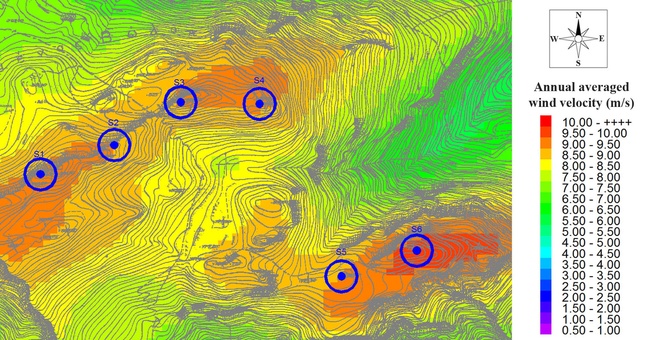

Figure 3: Representation of the wind park’s”Tsivi” siting on a wind potential map background. |
||
|
|
||
|
|
||
|

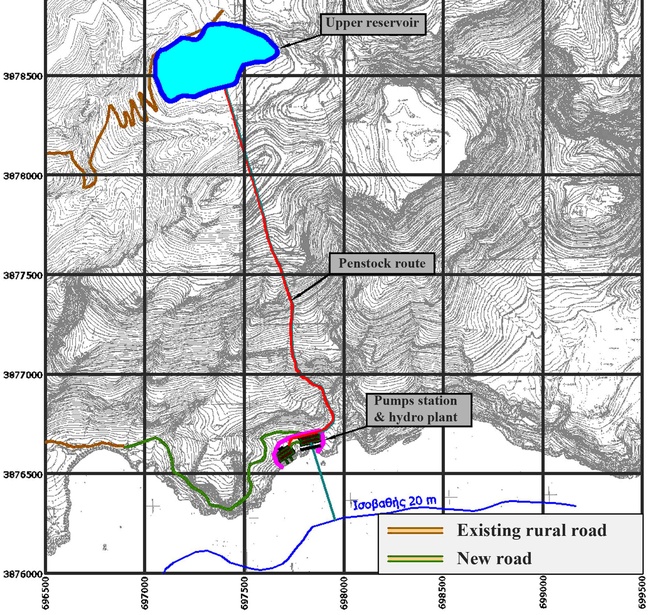

Figure 4: Siting of the pumped hydro storage system. |
||
|
|
|
|
|
4. Dimensioning |
|
|
|
Nominal guaranteed power (MW) |
55.0 |
|
|
Wind park’s nominal power (MW) |
66.0 |
|
|
Hydro turbines nominal power (MW) |
64.9 |
|
|
Pumps nominal mechanical power (MW) |
58.1 |
|
|
Pumps nominal electrical power (MW) |
64.6 |
|
|
Hydro turbines nominal flow (m3/s) |
12.34 |
|
|
Pumps nominal flow (m3/s) |
8.79 |
|
|
Penstock structure |
double penstock |
|
|
Minimum falling head (m) |
468.46 |
|
|
Maximum pumping head (m) |
527.86 |
|
|
Falling penstock inner diameter (m) |
2 x 2.0 |
|
|
Pumping penstock inner diameter (m) |
2 x 2.0 |
|
|
Upper reservoir total volume (m3) |
2,000,484 |
|
|
Upper reservoir effective capacity (m3) |
1,926,722 |
|
|
Minimum water volume stored in upper reservoir (m3) |
73,762 |
|
|
Total penstock length (m) |
2,450 |
|
|
Lower reservoir |
sea |
|
|
|
|
|
|
|
||
|

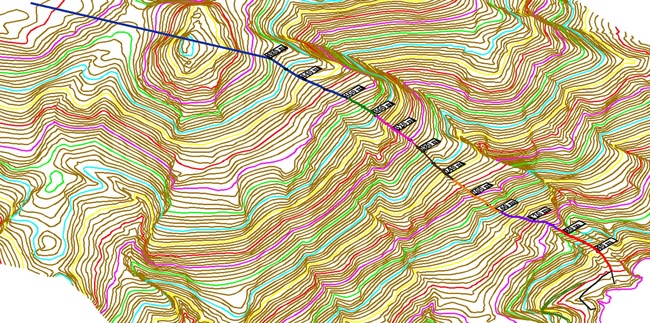

Figure 5: Penstock route representation on a 3D digitized land terrain. |
||
|
|
|
|
|
|
||
|

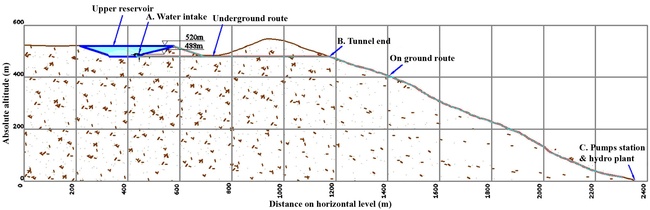

Figure 6: Vertical cross section of the penstock route. |
||
|
|
|
|
|
5. Energy – environmental results |
|
|
|
Annual cover percentage of the electricity consumption in the autonomous insular system from the hybrid power plant: |
4.72% |
|
|
CO2 emission annual reduction (tn): |
98,036 (5.16%) |
|
|
|
|
|
|
|
||
|

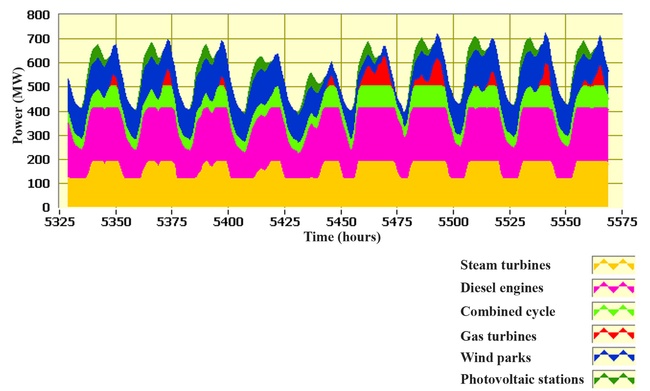

Figure 7: Power production synthesis during the annual peak power demand period (August) before the introduction of the hybrid power plant. |
||
|
|
|
|
|
|
||
|

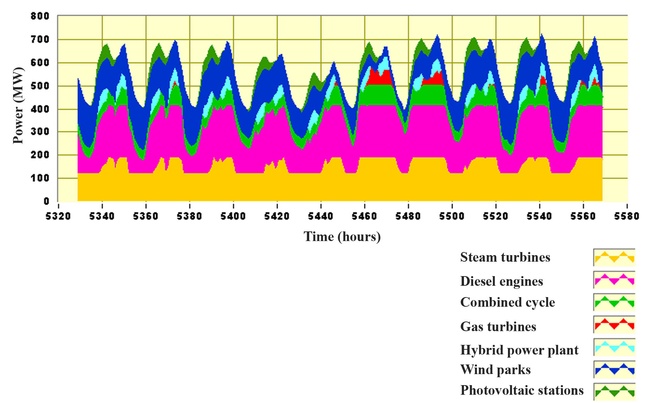

Figure 8: Power production synthesis during the annual peak power demand period (August) after the introduction of the hybrid power plant. |
||
